Photovoltaic DC Isolator Solar Switch IP66 Waterproof Insulated Switch for Solar Powered RV 1500V DC 32A 4P
Key Words:
Photovoltaic,Electrical,Isolator,Solar,Switch§Photovoltaic,Isolator,Solar,Switch§PV,DC,Switch§DC,Isolator,Solar,Switch§DC,Disconnect,Switch§Solar,Disconnect,Switch
Note:
Package List:
1 x Switch 4 x Screw4 x Expansion Tube16 x Connector Accessory(4 Set)1 x Wrench
Features:
1„ÄÅScope of Application: DC switch is used to switch off all poles of the solar module. It is installed on the string line between the module and the grid inverter or charge controller. 2„ÄÅCompact Size: Comes with a compact size, this switch is suitable for places with limited space. The applicable area is larger. 3„ÄÅPowerful Function: This switch has a load breaking up to 8 times the rated current, making it ideal for motor isolation. 4„ÄÅPC Material: Made of PC material, this switch is flame retardant, possesses premium insulation, heat resistance, acid and alkali resistance. 5„ÄÅWide Application: This switch is widely used for solar power systems for RVs, boats and off grid, on grid solar systems.
Specification:
Item Type: Photovoltaic DC SwitchMaterial: PCNumber of Poles: 4PMaximum Rated Voltage: 1500VMaximum Insulation Voltage: 1500VRated Current: 32AWaterproof Grade: IP66Standard: IEC60947 3Ambient Temperature: -25‚ÑÉ to +85‚ÑÉInsulation Voltage: DC1500VConnection Method: M20, M25

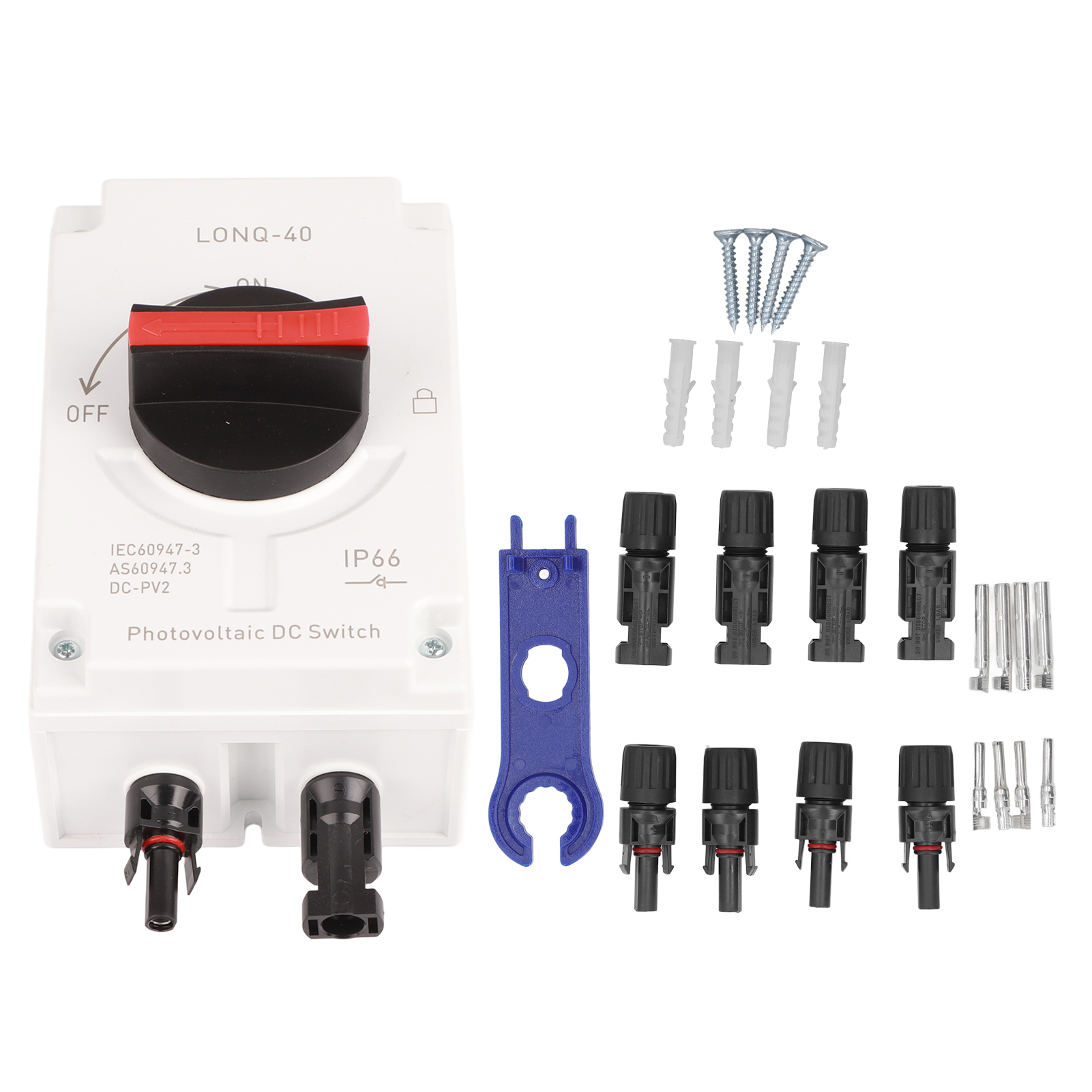

Product Image:
Photovoltaic,Electrical,Isolator,Solar,Switch§Photovoltaic,Isolator,Solar,Switch§PV,DC,Switch§DC,Isolator,Solar,Switch§DC,Disconnect,Switch§Solar,Disconnect,Switch
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Package List:
1 x Switch 4 x Screw4 x Expansion Tube16 x Connector Accessory(4 Set)1 x Wrench
Features:
1„ÄÅScope of Application: DC switch is used to switch off all poles of the solar module. It is installed on the string line between the module and the grid inverter or charge controller. 2„ÄÅCompact Size: Comes with a compact size, this switch is suitable for places with limited space. The applicable area is larger. 3„ÄÅPowerful Function: This switch has a load breaking up to 8 times the rated current, making it ideal for motor isolation. 4„ÄÅPC Material: Made of PC material, this switch is flame retardant, possesses premium insulation, heat resistance, acid and alkali resistance. 5„ÄÅWide Application: This switch is widely used for solar power systems for RVs, boats and off grid, on grid solar systems.
Specification:
Item Type: Photovoltaic DC SwitchMaterial: PCNumber of Poles: 4PMaximum Rated Voltage: 1500VMaximum Insulation Voltage: 1500VRated Current: 32AWaterproof Grade: IP66Standard: IEC60947 3Ambient Temperature: -25‚ÑÉ to +85‚ÑÉInsulation Voltage: DC1500VConnection Method: M20, M25
Product Image:
